Partial Solar Eclipse of 2138 Feb 09

Fred Espenak

Introduction

eclipse map

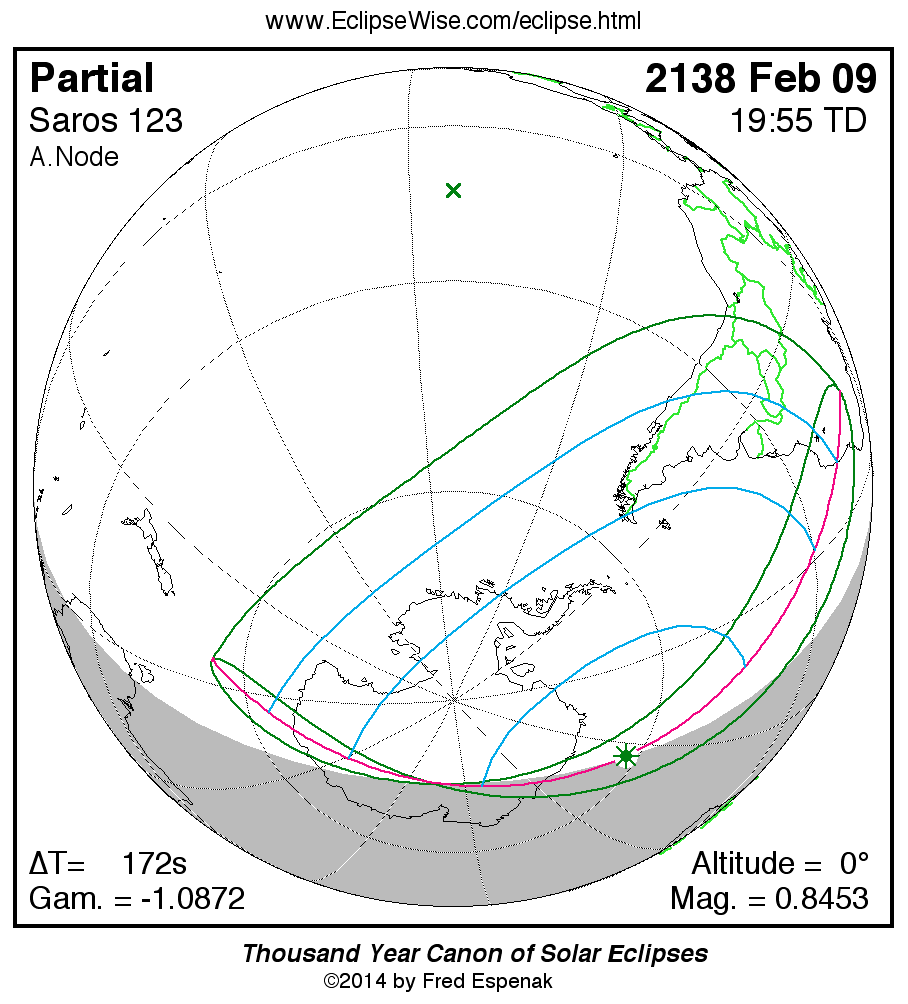

The Partial Solar Eclipse of 2138 Feb 09 is visible from the geographic regions shown on the map to the right. Click on the map to enlarge it. For an explanation of the features appearing in the map, see Key to Solar Eclipse Maps.

The instant of greatest eclipse takes place on 2138 Feb 09 at 19:55:23 TD (19:52:31 UT1). This is 0.6 days after the Moon reaches perigee. During the eclipse, the Sun is in the constellation Capricornus. The synodic month in which the eclipse takes place has a Brown Lunation Number of 2661.

The eclipse belongs to Saros 123 and is number 60 of 70 eclipses in the series. All eclipses in this series occur at the Moon’s ascending node. The Moon moves southward with respect to the node with each succeeding eclipse in the series and gamma decreases.

This is a very deep partial eclipse. It has an eclipse magnitude of 0.8453, while Gamma has a value of -1.0872.

The partial solar eclipse of 2138 Feb 09 is followed two weeks later by a total lunar eclipse on 2138 Feb 24.

These eclipses all take place during a single eclipse season.

The eclipse predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 172.2 seconds for this eclipse.

The following links provide maps and data for the eclipse.

The tables below contain detailed predictions and additional information on the Partial Solar Eclipse of 2138 Feb 09 .


Eclipse Data: Partial Solar Eclipse of 2138 Feb 09

Eclipse Characteristics
Parameter Value
Eclipse Magnitude 0.84526
Eclipse Obscuration 0.81102
Gamma-1.08720
Conjunction Times
Event Calendar Date and Time Julian Date
Greatest Eclipse 2138 Feb 09 at 19:55:22.9 TD (19:52:30.7 UT1) 2501988.328133
Ecliptic Conjunction 2138 Feb 09 at 19:44:32.4 TD (19:41:40.2 UT1) 2501988.320604
Equatorial Conjunction 2138 Feb 09 at 19:05:11.9 TD (19:02:19.7 UT1) 2501988.293284
Geocentric Coordinates of Sun and Moon
2138 Feb 09 at 19:55:22.9 TD (19:52:30.7 UT1)
Coordinate Sun Moon
Right Ascension21h33m08.5s21h35m01.1s
Declination-14°31'13.5"-15°31'51.3"
Semi-Diameter 16'12.9" 16'41.7"
Eq. Hor. Parallax 08.9" 1°01'16.1"
Geocentric Libration of Moon
Angle Value
l 1.4°
b 1.5°
c -17.2°
Prediction Parameters
Paramater Value
Ephemerides JPL DE406
ΔT 172.2 s
k (penumbra) 0.2725076
k (umbra) 0.2722810
Saros Series 123 (60/70)

Explanation of Solar Eclipse Data Tables

Penumbral Shadow Contacts and Extremes: Partial Solar Eclipse of 2138 Feb 09

Contacts of Penumbral Shadow with Earth
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
First External ContactP118:03:24.218:00:32.064°51.4'S149°48.3'E
Last External ContactP421:47:43.521:44:51.320°16.5'S047°15.0'W
Extreme Northern and Southern Path Limits of Penumbra
Contact Event Contact Time
TD
Time
UT1
Latitude Longitude
North Extreme Path Limit 1N118:24:30.918:21:38.754°57.5'S156°22.6'E
South Extreme Path Limit 1S121:26:34.821:23:42.609°04.1'S045°04.6'W

Explanation of Penumbral Shadow Contacts and Extremes Tables

Polynomial Besselian Elements: Partial Solar Eclipse of 2138 Feb 09

Polynomial Besselian Elements
2138 Feb 09 at 20:00:00.0 TD (=t0)
n x y d l1 l2 μ
0 0.48477 -0.97416 -14.5170 0.53843 -0.00769 116.5150
1 0.53070 0.23741 0.0129 0.00003 0.00003 15.0011
2 -0.00007 0.00015 0.0000 -0.00001 -0.00001 0.0000
3 -0.00001 -0.00000 - - - -
Tan ƒ1 0.0047399
Tan ƒ2 0.0047163

At time t1 (decimal hours), each besselian element is evaluated by:

x = x0 + x1*t + x2*t2 + x3*t3 (or x = Σ [xn*tn]; n = 0 to 3)

where: t = t1 - t0 (decimal hours) and t0 = 20.000

Explanation of Polynomial Besselian Elements

Links for the Partial Solar Eclipse of 2138 Feb 09

Links to Additional Solar Eclipse Information

Calendar

The Gregorian calendar (also called the Western calendar) is internationally the most widely used civil calendar. It is named for Pope Gregory XIII, who introduced it in 1582. On this website, the Gregorian calendar is used for all calendar dates from 1582 Oct 15 onwards. Before that date, the Julian calendar is used. For more information on this topic, see Calendar Dates.

The Julian calendar does not include the year 0. Thus the year 1 BCE is followed by the year 1 CE (See: BCE/CE Dating Conventions). This is awkward for arithmetic calculations. Years in this catalog are numbered astronomically and include the year 0. Historians should note there is a difference of one year between astronomical dates and BCE dates. Thus, the astronomical year 0 corresponds to 1 BCE, and astronomical year -1 corresponds to 2 BCE, etc..

Eclipse Predictions

Predictions for the Partial Solar Eclipse of 2138 Feb 09 were generated using the JPL DE406 solar and lunar ephemerides. The lunar coordinates were calculated with respect to the Moon's Center of Mass. The predictions are given in both Terrestrial Dynamical Time (TD) and Universal Time (UT1). The parameter ΔT is used to convert between these two times (i.e., UT1 = TD - ΔT). ΔT has a value of 172.2 seconds for this eclipse.

Acknowledgments

Some of the content on this website is based on the book Thousand Year Canon of Solar Eclipses 1501 to 2500. All eclipse calculations are by Fred Espenak, and he assumes full responsibility for their accuracy.

Permission is granted to reproduce eclipse data when accompanied by a link to this page and an acknowledgment:

"Eclipse Predictions by Fred Espenak, www.EclipseWise.com"

The use of diagrams and maps is permitted provided that they are NOT altered (except for re-sizing) and the embedded credit line is NOT removed or covered.
