2017 Total Solar Eclipse in Illinois

by Fred Espenak

Index
Path in Illinois
Weather Prospects
Fun Facts
Eclipse Viewing Events
Google Eclipse Map
Eclipse Circumstances for Cities
Animation of the Moon's Shadow
States in Path of Totality
Publications on the 2017 Eclipse
Additional Links

eclipse book

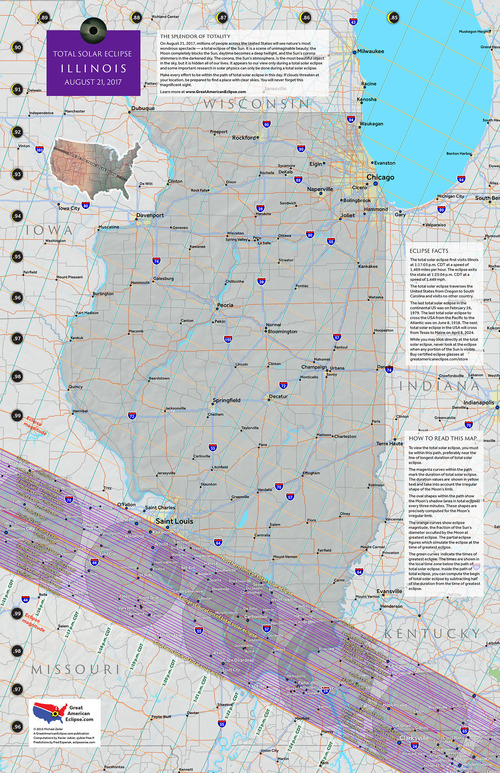

The 2017 Eclipse Path in Illinois

Map courtesy of Michael Zeiler GreatAmericanEclipse.com

The 2017 Total Solar Eclipse in Illinois

On 2017 August 21, a total eclipse of the Sun is visible from within a narrow corridor that traverses the United States of America. The path of the Moon's umbral shadow begins in northern Pacific and crosses the USA from west to east through parts of the following states: Oregon, Idaho, Wyoming, Nebraska, Kansas, Missouri, Illinois, Kentucky, Tennessee, North Carolina, Georgia, and South Carolina (a tiny corner of Montana and Iowa are also in the path). A partial eclipse visible from a much larger region covering all of North America (See Map).

Crossing the Mississippi River, the Moon's shadow leaves Missouri and enters Illinois where it encounters Carbondale, a small city (pop. 26,300) with a big future in eclipses. That's because the track of the total solar eclipse of 2024 April 08 also passes through the municipality. Furthermore, the greatest duration of totality along the entire track (2 minutes 40.3 seconds) occurs just 20 km (12 mi) southeast of Carbondale. The city itself must be content with a duration 4 seconds shorter due to its location 11 km (7 mi) north of the central line. It's no wonder that some people are calling Carbondale "Eclipse City."

Because the umbral eclipse path crosses the very southernmost end of the state, it quickly leaves Illinois and enters Kentucky.

Safe Eclipse Viewing

Every total eclipse of the Sun begins and ends with a partial eclipse. The partial phases require either a projection technique or a special solar filter to be viewed safely. Read more about this at Safe Solar Eclipse Viewing.

Of course during the few brief minutes of Totality when the Sun's disk is completely covered by the Moon, it is then safe to look directly at the Sun with the naked eye or through a telescope or binoculars.

Weather Prospects in Missouri and Illinois

(Excerpts from Eclipse Bulletin: Total Solar Eclipse of 2017 August 21)

The portion of the eclipse track through Missouri and Illinois could very well be called the "river" section, as it follows the Missouri River to the Mississippi River, and then passes over the lower Ohio River on its path across Illinois. Because so much of the track is along or across these rivers, it’s generally a lowland transit along the central line, except in southeast Missouri. There, the south side of the track skirts the Ozark Plateau and then passes over the 1700-foot-high St. Francois Mountains before descending onto the floodplain of the Mississippi and Ohio Rivers, where elevations are about 1300 feet lower.

Average August afternoon cloud cover across Missouri and Illinois is nearly constant, at around 65% in the satellite-based statistics, a feature that is mirrored by weather-station observations from the ground. From the satellite viewpoint, the highest cloud levels on the central line occur south of St. Louis, near Festus, which is probably showing the influence of the nearby St. Francois Mountains. August cloud is typically convective cloud, usually building in the afternoon and settling overnight, though this is the general pattern and often interrupted by stronger weather systems that keep thunder and lightning going all through the night.

Meteorological data reveals that the average cloudiness is close to 50% across lowland Missouri but the percent of possible sunshine is still a promising 65% or thereabouts. Satellite and surface-station observations do not distinguish between opaque and transparent cloud, and so the relatively large sunshine readings are not surprising - some portion of it will come from semi-transparent clouds through which the Sun can shine and record its presence on the instruments. Just remember that cloud statistics - surface and satellite - should be used to compare one site with another and not to decide on the absolute probability of seeing the eclipse. That latter probability is best derived from the sunshine data, but even then, only imperfectly.

After crossing the St Francois Mountains, the track descends to the Mississippi and Ohio valleys and across the Big Muddy Watershed, where the average cloud cover declines once again. It’s only a ~5% decline, but it comes at a propitious place: near Carbondale, IL. Carbondale could justifiably be called America’s "Eclipse City," for it lies at the point where the eclipse tracks of 2017 and 2024 cross.

During the summer months, hot and muggy weather from the Gulf of Mexico is entrenched over Missouri and Illinois. Afternoon temperatures average close to 90 degrees and relative humidities hover near 50%. Such energy-sapping weather often persists for days, but in late August, relief comes irregularly when cool and dry air masses push southward from Canada and the Upper Midwest to bring a break in the sultry weather. For those not familiar with Midwest weather, the humid conditions will prove a challenge. These conditions are also important elements in thunderstorm development, though by August, the frequency of severe storms at least is much less than at its peak in May and June; tornadoes are quite uncommon in the month.

A great source of weather forecasts in the days leading up to the eclipse is Jay Anderson's Eclipsophile.com.

Excerpts from Eclipse Bulletin: Total Solar Eclipse of 2017 August 21. This material may not be reproduced without permission.

Fun Facts for the 2017 Total Eclipse in Illinois

  • The instant of greatest duration of totality along the entire track (2 minutes 40.3 seconds) occurs just 20 km (12 mi) southeast of Carbondale at 1:21:49 pm CDT.
  • The central line covers a distance of 75 miles across Illinois.
  • The width of the path of totality is 71.1 miles across Illinois.
  • The average central line duration of totality is 2 minutes 40.2 seconds across Illinois.
  • The average speed of the Moon's shadow is 1452 mph across Illinois.
  • The center of the Moon's shadow sweeps across entire state of Illinois (from west to east) in just 3 minutes 7 seconds (a distance of 75 miles).
  • Before 2017, the last two total solar eclipses visible from Illinois were on 1869 Aug 01 and 1806 Jun 16.
  • After 2017, the next two total solar eclipses visible from Illinois will be on 2024 Apr 08 and 2153 Oct 17.

Eclipse Viewing Events and Local Pages in Illinois

Google Map of 2017 Total Eclipse in Illinois

eclipse book
Google Map of 2017 Total Eclipse in Illinois
(Click to use interactive map)

The map above links to an interactive Google map showing the visibility of the Total Solar Eclipse of 2017 Aug 21 in Illinois. The interactive map allows the user to zoom and drag the map as desired. Click the cursor on any location to generate eclipse circumstances from that location.

Eclipse Circumstances for Cities in Illinois

The table below lists eclipse circumstances for a number of cities in Illinois. The following information is given for each city.

  • The type of eclipse seen from the city (Partial or Total).
  • The times when the partial eclipse begins and ends.
  • The times when the total eclipse begins and ends.
  • The time of maximum eclipse.
  • The altitude on the Sun above the horizon (in degrees) at each of these times.
  • The Eclipse Magnitude at maximum eclipse. Eclipse Magnitude is the fraction of the Sun’s diameter occulted by the Moon.
  • The Eclipse Obscuration at maximum eclipse. Eclipse obscuration is the fraction of the Sun’s area occulted by the Moon.
  • The Duration Total Eclipse is the length of the total phase in minutes and seconds (i.e., totality).

The times appearing in this table include Daylight Saving Time (DST) for all cities in which DST is observed. Report time zone or DST corrections for any city to EclipseWise.

Thanks to Bill Kramer (Eclipse-Chasers.com) for helping to develop the code to generate the above eclipse circumstances table. To calculate predictions for other cities see 2017 Eclipse Circumstances Calculator.

The partial phases require either a projection technique or a special solar filter to be viewed safely. On the other hand it is completely safe to watch Totality with the naked eye. For more information see Safe Solar Eclipse Viewing.

Animation of the Moon's Shadow Across Illinois


The animation above shows the Moon's umbral shadow as it tracks across Illinois. Observers must be inside this path to see the total eclipse. Outside the path only a partial eclipse is seen.

Animation courtesy of Michael Zeiler GreatAmericanEclipse.com.

States in the Path of Totality

The index below gives links to special pages for each of the 12 states in the path of the 2017 total solar eclipse. Note that the eclipse path also crosses a tiny corner of Montana and Iowa, but they are not included in this table.

States in the Path of Totality

Georgia

Kentucky

Oregon

Idaho

Missouri

South Carolina

Illinois

Nebraska

Tennessee

Kansas

North Carolina

Wyoming

eclipse book
11" x 17" poster map of the 2017 eclipse path through Illinois
(GreatAmericanEclipse.com)

Additional Links for the 2017 Total Solar Eclipse



eclipse book
Safe Solar Eclipse Glasses


eclipse book
Rainbow Symphony Eclipse Shades


eclipse book
Thousand Oaks Optical Solar Filters


eclipse book
Great American Eclipse Store

Links to Additional Solar Eclipse Information

  • Home - home page of EclipseWise with predictions for both solar and lunar eclipses

Acknowledgments

Some in the JavaScript code used here is based on the work of Deirdre O'Byrne and Stephen McCann. Bill Kramer (Eclipse-Chasers.com) has expanded this code to work with dozens of cities.

The Besselian elements and values of ΔT used in these calculations are from Eclipse Bulletin: Total Solar Eclipse of 2017 August 21.

Permission is freely granted to reproduce this data when accompanied by an acknowledgment:

"Eclipse Predictions by Fred Espenak (EclipseWise.com)"


Return to: Total Solar Eclipse of 2017 August 21
